Description

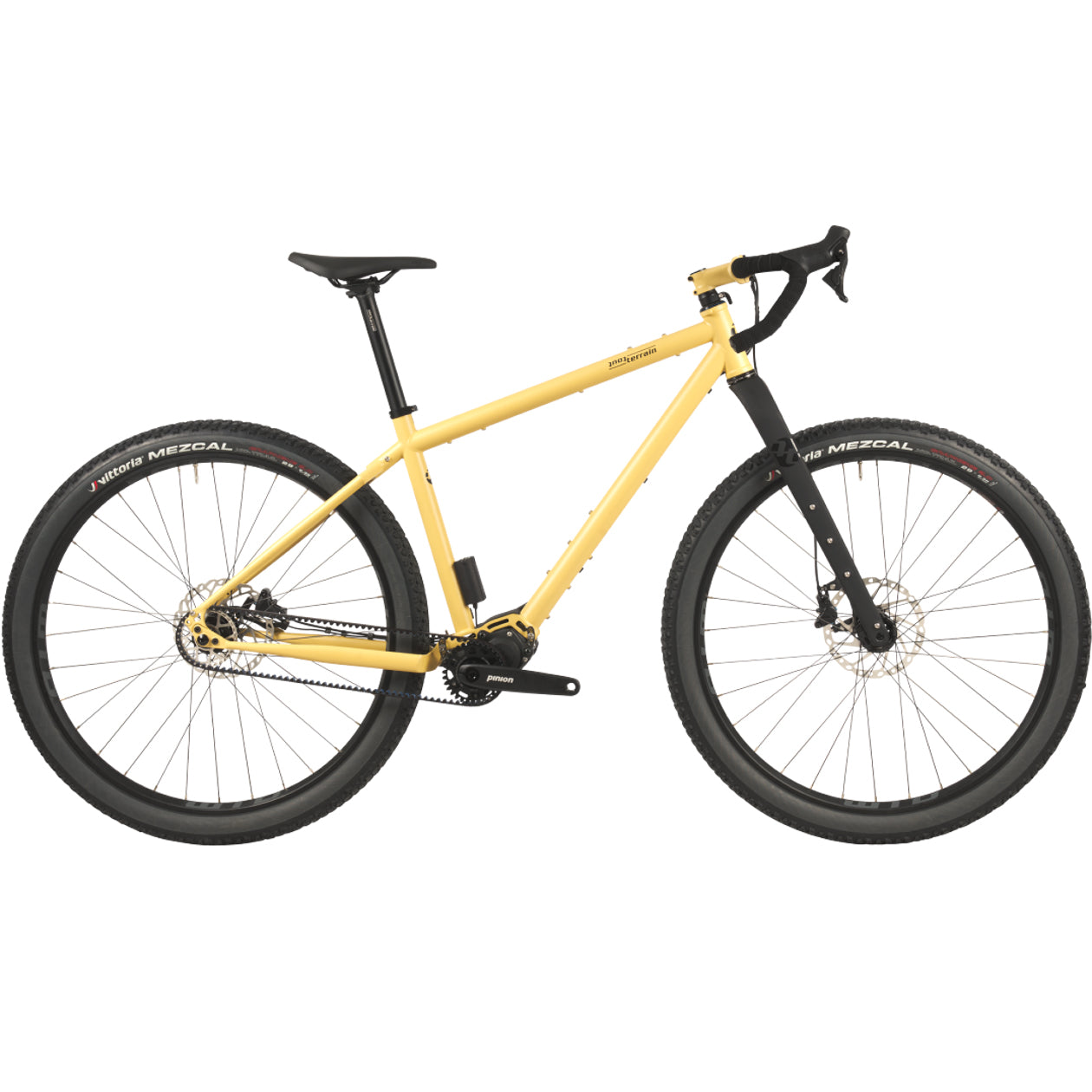

gt bike gravel Outback Xplore GT II 29 Select 6.1The new edition of our trail ready 29er Outback in the GT version with drop handlebars. Optimized for endurance bikepacking and equipped with a carbon fork, smooth shifting Pinion gearbox, multiple bottle and bag mounts, and a great deal of attention to detail. Lighting: n a Rims: WTB KOM tough i25 Fork: Tout Terrain Adventure Fork II Carbon fork Handles: Tout Terrain Ergo screw grips Rear wheel hub: Tout Terrain EX R2 1S Centerlock brake disc mount
The new edition of our trail-ready 29er Outback in the GT version with drop handlebars. Optimized for endurance bikepacking and equipped with a carbon fork, smooth-shifting Pinion gearbox, multiple bottle and bag mounts, and a great deal of attention to detail.
| Lighting: | n/a |
|---|---|
| Rims: | WTB KOM tough i25 |
| Fork: | Tout Terrain Adventure Fork II | Carbon fork |
| Handles: | Tout Terrain Ergo screw grips |
| Rear wheel hub: | Tout Terrain EX-R2 - 1S | Centerlock brake disc mount |
| Bottom bracket: | Pinion |
| Steering stop: | Tout Terrain Ergo-Stop II |
| Handlebars: | Tout Terrain Longhorn | 780mm | 21° flare |
| Tires: | Vittoria Mezcal | 29"x2.35" / 60-622 |
| Saddle: | WTB Volt Medium |
| Seatpost: | Tout Terrain | 30.9mm |
| Mudguard: | n/a |
| Tax rate: | Cane Creek 40 | ZS44 / EC44 |
| Stand: | Retrofittable |
| Stem: | Tout Terrain | 70mm | +/- 6° |
| Front wheel hub: | Tout Terrain EX-F1 Boost | Centerlock brake disc mount |
| Drive: | Pinion C1.12i Smart.Shift gearbox | Gates Carbon Drive belt drive |
| Size: | S, M, L, XL |
| Brake: | TRP Hywire | hydraulic disc brake |
| Model: | Outback |
| Frame: | Outback Xplore steel frame | Tout Terrain Stratocrom tubing |
| Maximum weight allowed: | 130 kg (frame) / 15 kg front, 26 kg rear (luggage rack) |
| Axle dimensions: | Front: 15/110mm thru axle | Rear: 12/142mm thru axle |
| Frame color: | Tuareg matt |
| Brake mount: | Front: Post Mount 180-203mm | Rear: IS2000 |
| Brake disc size (front/rear): | 180mm/160mm |
| Bottle holder mounting positions: | 4 (frame) + 2 (fork) |
| Wheel size: | 29" |
| Weight: | from 14.1 kg |
| Luggage rack: | Retrofittable |
| Translation: | 32/30 | 600% |
| Gearshift lever: | Pinion TE-1 |
| Crank: | Pinion Boost forged | CDX 32T pulley | 170mm |
| Cassette: | Gates Carbon Drive CDX | 30T |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 420 | 470 | 500 | 530 |
| A1 | SEAT TUBE LENGTH (mm) | 360 | 410 | 440 | 470 |
| B | TOP TUBE LENGTH (mm) | 575 | 595 | 615 | 640 |
| C | HEAD TUBE LENGTH (mm) | 120 | 125 | 130 | 135 |
| D | CHAINSTAY LENGTH (mm) | 462 | 462 | 462 | 462 |
| E | WHEELBASE (mm) | 1132 | 1153 | 1173 | 1199 |
| F | BOTTOM BRACKET DROP (mm) | 65 | 65 | 65 | 65 |
| G | HEAD TUBE ANGLE (*) | 68 | 68 | 68 | 68 |
| H | SEAT TUBE ANGLE (*) | 74 | 74 | 74 | 74 |
| I | STACK (mm) | 625 | 629 | 634 | 639 |
| J | REACH (mm) | 394 | 412 | 431 | 455 |
| K | STAND OVER CLEARANCE (mm) | 790 | 816 | 832 | 848 |
| L | FORK MOUNTING HEIGHT (mm) | 495 | 495 | 495 | 495 |
| M | FORK OFFSET (mm) | 51 | 51 | 51 | 51 |
